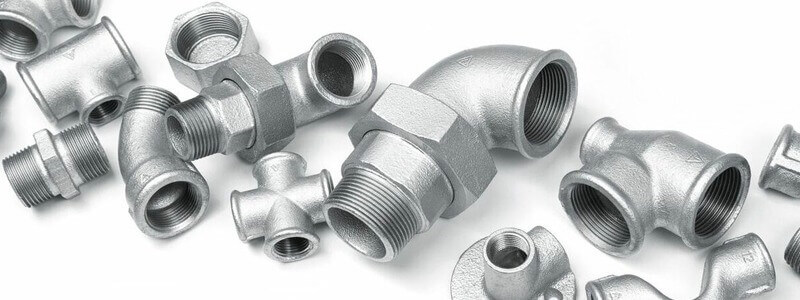

The association Technolloy Inc. has a wide assembling of things through a piece of the handpicked gear that aides and helps most of the business in the manifestations. Monel 400/K500 Forged Fittings is the thing which is accessible in sufficient total.
There are various types of things made utilizing Monel Alloye something such is Monel 400/K500 Forged Fittings that are broadly utilized in current and business applications considering its splendid showcase. A get-together of nickel mixes are produced using nickel and copper with some extent of manganese, iron, silicon, and carbon. The Alloye is more grounded and is essentially invulnerable to breaking down by various specialists like seawater. The monel fittings can be made in a split second by the cold and hot working, welding and machining. There are various undertakings where these conveyed fittings are utilized and considered best for a large number of utilizations. These fittings are essentially utilized in conditions like high weight, vibration and harming condition.
These Monel 400/K500 Forged Fittings are used in a couple of organizations like water supply structures, this is because it is used in fundamental lines and even purposes in warming purposes as well. One of the fundamental objectives is to include it in the oil and gas pipeline. So the lines work is at this point inadequate without it. These endeavors are especially well known and it seriously uses many these things.
TheseMonel 400/K500 Forged Fittings formed fittings run over different tests and assessments that help Manufacturerss with checking whether or not the fabricated thing is of first rate. The tests particularly solidify pariah appraisal, visual review, PMI test and pitting obstruction test. Right when all of the tests are done, these planned fittings are full in with the objective that it shouldn't get rust and harms. These fabricated fittings are conveyed utilizing premium appraisal of the thing by seeing all quality rules as indicated by far reaching principles. These things are totally utilized in petrochemicals, gas, and oil dealing with plants. All such things are successfully accessible in different sizes and can be additionally different by the basics of the clients.
400/K500 Monel Forged Fittings Equivalent Grades
STANDARD | UNS | WNR. | JIS | EN |
---|---|---|---|---|
Monel 400 | N04400 | 2.4360 | NW 4400 | NiCu30Fe |
Monel K500 | N05500 | 2.4375 | - | - |
Monel Forged Fittings Specification : ASTM B564 / ASME SB564
Dimension Standard : ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799
Size : 1/8" NB to 4" NB
Type : Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)
Rating Pressure : Threaded End - 2000 /3000/ 6000 LBS.
Socket-weld End - 3000 / 6000/ 9000 LBS.
Chemical Alloyion of Monel 400/K500 Forged Fittings
Grade | Ni | Fe | C | Mn | Si | Cu | Al | Ti | S |
---|---|---|---|---|---|---|---|---|---|
400 | 63.0- 70.00 max | 2.50 max | 0.3 max | 2.00 max | 0.50 max | Remainder | - | - | 0.024 max |
K500 | 63.0 min | 05 - 2 | 0.25 max | 1.5 max | 0.5 max | 27.0 - 33.0 | 2.3 - 3.15 | 0.35 - 0.85 | 0.010 max |
Mechanical Properties Of Monel 400/K500 Forged Fittings
Grade | Tensile (ksi) | .2% Yield (ksi) | Elongation % | Hardness (HRb) |
---|---|---|---|---|
400 | 75 to 90 | 25 to 50 | 60 to 35 | 60 to 80 |
K500 | Psi – 1,60,000 , MPa – 1100 | Psi – 1,15,000 , MPa – 790 | 20 % | - |
Physical Properties of 400/K500 Monel Forged Fittings
Density@ Room Temp | 0.318 lb/in3 |
---|---|
Elastic Modulus @ 70ºF (tension) | 26.0 x 106psi |
Specific Heat @ 70°F | 0.102 Btu/lb/°F |
Melting Point | 2370°F to 2460°F |
Thermal Conductivity @ 70°F | 151 Btu • in/h/ft 2 /°F |
Electrical Resistivity @ 70°F | 0.511 μ Ω • m |
