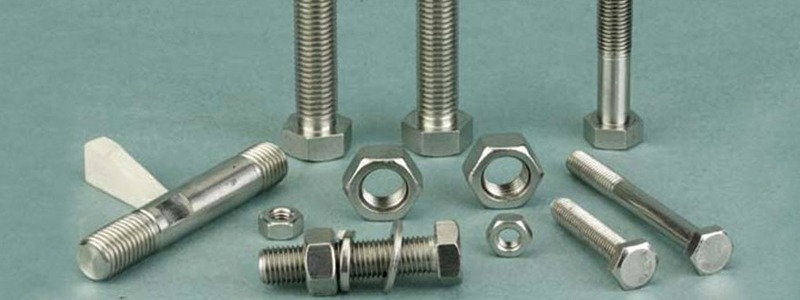

Monel 400/K500 Fasteners is presented in various sizes and shapes as per the exceptional in the market by Technolloy Inc. Engg. in addition, Co. We are the most unmistakable producer and Suppliers of the material interest by the client. We stay mindful of the total by doing real testing and p-bundling additionally for the avoidance of any sort of underhandedness.
The Monel 400/K500 Fastener is a mix of copper and nickel which has extraordinary use obstruction and high strength. It has uncommon security from seawater, water energized horrendous, and also has high strength and robustness. The most mind blowing nature of this blend is excellent durability and obstacle. They are particularizing with DIN, ASTM, SAE, ASME, and there several elements similarly which makes this Alloy strong for the use. As a result of this enormous number of parts they are non-charming to temperatures up to - 150 degrees Celsius and have low penetrability.
Monel 400 is a copper-nickel mix that is exceptionally invulnerable to steam and seawater at high temperatures and besides polishing off and salt strategies. It will overall be set by a disease working which makes Alloy 400 a strong arrangement. It is a pleasant helper of warm conductivity and besides having fantastic pliability. Monel 400 blend is applied in the siphons, valves, heat exchangers, hydro-carbon managing, designed dealing with, and marine preparation.
Monel K500 is an improvement acclimated copper-nickel blend that blends in with the phenomenal usage opposition part of Monel 400 with the benefit notwithstanding more critical hardness and strength. These raised parts, seat and strength are accomplished by adding titanium and aluminum to the copper-nickel base and to influence age-solidifying warm dealing with is utilized. The endurance of this mix is safeguarded to 1200 Degree F yet ridiculous down to temperatures of 400 Degree F and stays bendable. 2400-2600Degree F is its dissolving range. It is non-engaging and streaks deterrent. Monel K500 Fastener is thoroughly utilized in endeavors like cycle vessels, propeller shafts, valves and siphons, heat exchangers, oil tills and gas tanks, marine applications, substance managing plants, and so forth.
Both Monel 400/K500 affix have their extraordinary properties which make them essentially referenced unequivocally endeavors. The possibility of the thing is endeavored through different tests and legitimate bundling done to remain mindful of creation ability.
400/K500 Monel ASTM B164 Fasteners Equivalent Grades
STANDARD | UNS | WNR. | EN | JIS | GOST | AFNOR | BS |
---|---|---|---|---|---|---|---|
Monel 400 | N04400 | 2.4360 | NiCu30Fe | NW 4400 | МНЖМц 28-2,5-1,5 | NU-30M | NA 13 |
Monel K500 | N05500 | 2.4375 | - | - | - | - | - |
Specification of Monel Alloy Fasteners
Specification : ASTM B164 / ASME SB164
Dimension : DIN, ISO, ASTM, JIS, BS, GB, IS and all International Standards
Size Range : M3 - M56 | 3/6" to 2" | Custom Sizes
Length : 3 mm to 200 mm
Types : Nuts, Bolts, Screws, Sockets, Studs, Screw, Hex Set Screw, Socket Screw, Cap Screw, Pan Head Screw, Machine Screw, Socket Head Cap Screw, Allen Cap screw, Wing Screw, Washers, Spring Washers, Studs, Anchors, Marine Anchors, Nut, Hexagon Nut, Hex Nut, Hex Coupling Nut, Hex Domed Cap Nuts, Square Nut, Stud Bolts, Hex Head Bolts, Socket Hexagon Head Screw Anchor Bolt, U- Bolts, J Bolts, Mushroom Head Square Neck Bolts, T-Head Bolts, Wing Screw, Eye Bolt, Foundation Bolts, Structural Bolts.
Chemical Alloyion of Monel 400/K500 Industrial Fasteners
Grade | Ni | Fe | C | Mn | Si | Cu | Al | Ti | S |
---|---|---|---|---|---|---|---|---|---|
Monel 400 | 63.0- 70.00 max | 2.50 max | 0.3 max | 2.00 max | 0.50 max | Remainder | - | - | 0.024 max |
Monel K500 | 63.0 min | 05 - 2 | 0.25 max | 1.5 max | 0.5 max | 27.0 - 33.0 | 2.3 - 3.15 | 0.35 - 0.85 | 0.010 max |
Mechanical Properties Of ASME SB164 Monel Bolts & Nuts
Grade | Tensile (ksi) | .2% Yield (ksi) | Elongation % | Hardness (HRb) |
---|---|---|---|---|
400 | 75 to 90 | 25 to 50 | 60 to 35 | 60 to 80 |
K500 | Psi – 1,60,000 , MPa – 1100 | Psi – 1,15,000 , MPa – 790 | 20 % | - |
Physical Properties of Monel 400 Fasteners
Density@ Room Temp | 0.318 lb/in3 |
---|---|
Elastic Modulus @ 70ºF (tension) | 26.0 x 106psi |
Specific Heat @ 70°F | 0.102 Btu/lb/°F |
Melting Point | 2370°F to 2460°F |
Thermal Conductivity @ 70°F | 151 Btu • in/h/ft 2 /°F |
Electrical Resistivity @ 70°F | 0.511 μ Ω • m |
Physical Properties of Monel K500 Fasteners
Density (Kg.m-1) | 84.3 |
---|---|
Magnetic Permeability (20°C) | <1.005 |
Curie Temperature (°C) | -90 |
Young’s Modulus (N/mm2) | 179 x 103 |
Specific Heat, 20°C (J.Kg-1.°K-1) | 418 |
Specific Electrical Resistance, 20°C (?O.m) | 0.62 |
Thermal conductivity,20°C (W.m-1.°K-1) | 17.5 |
Mean coefficient of thermal expansion, 20-100°C (°K-1) | 13.4 x 10-6 |
