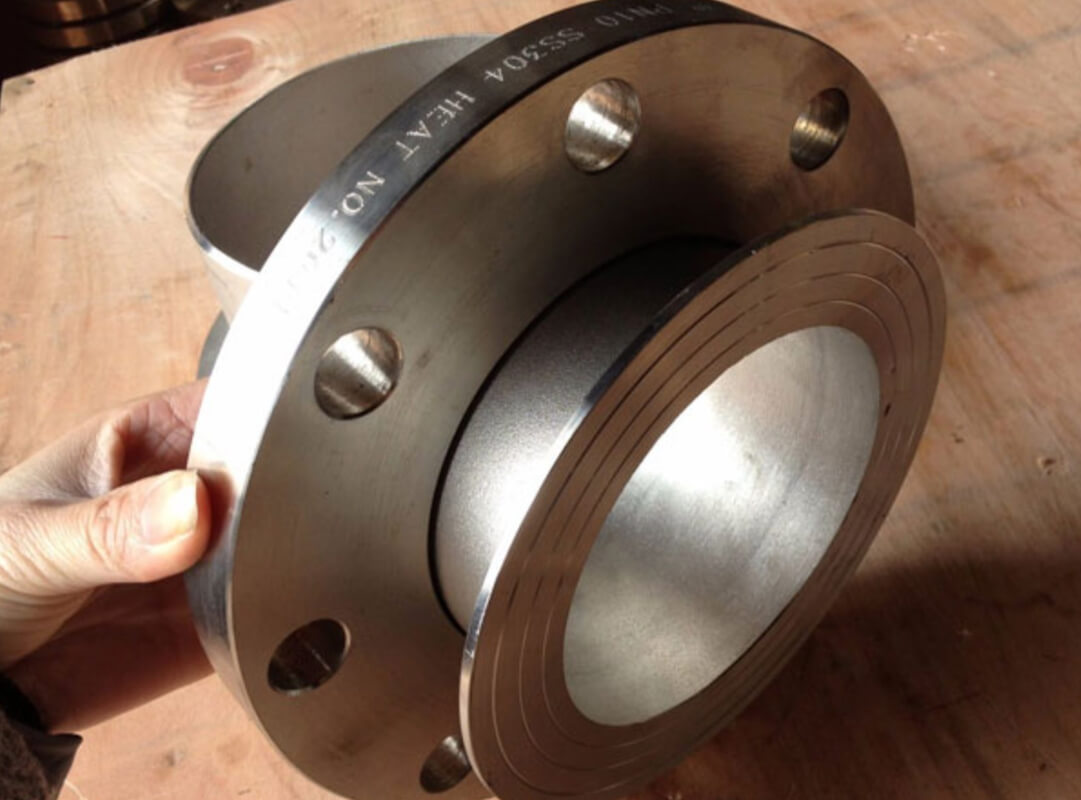

Technolloy Inc manufactures and supplies high-quality Lap Joint Flanges designed for piping systems that require reliable connections, convenient alignment, and easy maintenance. Lap Joint Flanges are commonly used with stub ends and are particularly suitable for applications where piping components need to be dismantled or repositioned frequently. Their practical design provides flexibility during installation while maintaining dependable sealing performance under demanding operating conditions.

What Are Lap Joint Flanges?

Lap Joint Flanges are two-piece flange assemblies generally used together with a lap joint stub end. Unlike integral flanges, the flange itself does not make direct contact with the process fluid when installed with a suitable stub end. The loose flange ring fits over the stub end and can rotate around the pipe, making bolt-hole alignment considerably easier during installation. This configuration is especially useful in piping systems where regular inspection, cleaning, replacement, or maintenance is required.

These flanges are manufactured in a range of materials, sizes, pressure classes, and dimensional configurations to meet project-specific requirements. Depending on the service environment, options can include carbon steel, stainless steel, alloy steel, duplex steel, and other engineering materials. Technolloy Inc can provide Lap Joint Flanges according to applicable dimensional and material specifications, including ASME B16.5 and ASME B16.47 requirements where applicable.

Advantages of Lap Joint Flanges?

Lap Joint Flanges provide a mechanically secure connection when correctly paired with the appropriate stub end, gasket, bolts, and piping components. Their robust construction supports dependable joint performance across industrial piping systems. Material selection and manufacturing controls can be tailored to pressure, temperature, and service requirements, helping maintain structural reliability throughout operation.

For corrosive or moisture-prone environments, Lap Joint Flanges can be produced from corrosion-resistant grades such as stainless steel, duplex stainless steel, and suitable nickel or alloy materials. The ability to select a material compatible with the process medium helps reduce corrosion-related degradation and supports dependable service in chemical processing, marine, petrochemical, and other challenging environments.

Industrial piping connections are exposed to pressure fluctuations, vibration, temperature changes, mechanical loads, and repeated maintenance activities. Properly manufactured Lap Joint Flanges are designed to withstand these operating conditions while maintaining dimensional stability and connection integrity. Their durable construction makes them suitable for demanding process and utility piping installations.

One of the main benefits of the lap joint configuration is the freedom to rotate the loose flange ring around the stub end. This feature simplifies bolt-hole alignment and can make installation more convenient, particularly where access is restricted or piping orientation is difficult to adjust. The configuration is also well suited to systems requiring repeated dismantling and reassembly.

Lap Joint Flanges can offer cost advantages in applications where corrosion-resistant piping materials are required. A suitable stub end can be selected for direct process-fluid contact while the backing flange may use a more economical material when engineering conditions permit. This approach can reduce material expenditure without compromising the functional requirements of the piping connection.

The combination of durable materials, flexible installation, straightforward maintenance, and suitable gasket and stub-end selection contributes to long-term performance. When manufactured to the required dimensional and material standards and installed according to engineering specifications, Lap Joint Flanges can provide consistent service over extended operating periods.

Uses and Applications of Lap Joint Flanges?

In refineries and petrochemical facilities, Lap Joint Flanges Manufacturers provide flange solutions for piping systems that may require regular inspection, cleaning, or component replacement. Their rotating design supports easier alignment during maintenance while suitable material grades can be selected for hydrocarbons, chemicals, elevated temperatures, and pressure-driven process services.

Chemical processing systems often handle aggressive fluids that require carefully selected corrosion-resistant materials. Lap Joint Flanges Suppliers can provide configurations using stainless steel, duplex steel, alloy steel, or other appropriate grades for piping assemblies where chemical compatibility and convenient maintenance are important considerations.

Water treatment, wastewater, and desalination facilities use flanged piping connections across process lines, filtration systems, pumps, and treatment equipment. Lap Joint Flanges Stockists can support these installations with different sizes, pressure classes, and corrosion-resistant material options suited to freshwater, treated water, seawater, and associated process environments.

Marine and offshore installations demand durable piping components capable of performing in humid, saline, and mechanically demanding environments. Lap Joint Flanges Exporters serve international projects with flange configurations engineered for marine piping, offshore process systems, utility lines, and equipment connections where corrosion resistance and maintenance accessibility are important.

Processing facilities in the food, beverage, and pharmaceutical sectors can use lap joint configurations where hygienic piping design, frequent cleaning, and easy component access are required. Proper material selection and surface finishing help support sanitary service conditions while the removable flange arrangement can simplify inspection and maintenance activities.

Lap Joint Flanges are also used in general industrial plants, power facilities, utility networks, heat-transfer systems, and equipment connections. Their installation flexibility makes them useful where piping alignment and periodic dismantling are practical concerns. Selection should be based on pipe size, pressure rating, temperature, fluid characteristics, flange material, and applicable standards.

Quality and Manufacturing Excellence

Technolloy Inc focuses on supplying engineered flange products for domestic and international industrial requirements. Lap Joint Flanges can be produced in different material grades, dimensions, pressure classes, and finishes according to project specifications. Quality-focused manufacturing, dimensional accuracy, material traceability, and application-oriented product selection help support dependable piping installations across multiple industries.

For international buyers, project contractors, EPC companies, distributors, and industrial procurement teams, Technolloy Inc offers Lap Joint Flanges suited to diverse piping requirements. Product specifications can be evaluated according to applicable ASME, ASTM, and project standards, with dimensions and material requirements established according to customer drawings or technical specifications.

Specification of Lap Joint Flanges?

Dimension of Lap Joint Flanges?
