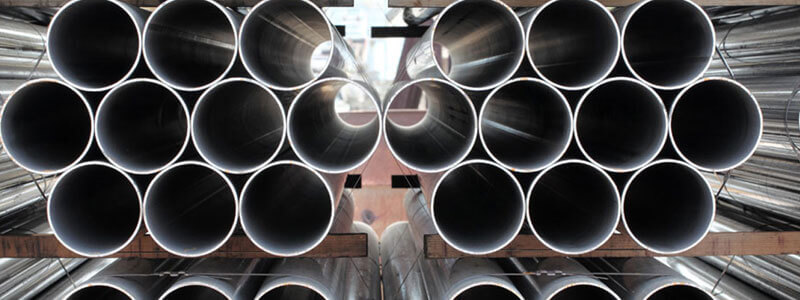

Hastelloy C22/C276 Pipes & Tubes
In all around the nation following acquiring the enthusiastic and steady trusts of the huge number of clients Technolloy Inc. is the solid producer or Suppliers of the Hastelloy C22/C276 Pipes and Tubes. It is a flexible steel nickel-molybdenum-tungsten-chromium mix having the escalate pressure crumbling breaking, security from pitting and opening usage. In an enormous number of conditions, this Alloye has an amazing crumbling obstruction since it is a nickel-chromium-molybdenum blend in with a blend of tungsten.
There are two sorts of Hastelloy C22/C276 Pipes &tubes. The first is Hastelloy Seamless Pipes and Tubes-These lines and chambers are made by drawing out them from a quarter and after that give it to the last size by6 cold-drawing. These are having highlights like uniform points, breaking down obstruction, cost-sufficiency, and consistency. These lines are made by plate rolling and some time later weld the anticipated Alloye to make pipes. Strategies like laser, high-rehash relationship of welding and TIG is utilized for making pipes.
Hastelloy Cold Drawn Pipes and Tubes-When wander from the hot-moved chambers and lines cold drawn give mind blowing machinability, broadened strength, and unsurprising establishment. The work ability of these lines is higher on the grounds that their microstructure is astoundingly unsurprising what's more having broadened veritable effects. Hastelloy C22/C276 Pipes and Tubes make by mechanical drugs, or by electroplating and either by machinability. The both inside and outside surface of the Hastelloy Tubes and Pipes is electro-cleaned to get the even point.
These Pipes and loads come in four plans that are cut length, round, rectangular and square. The length of the lines and chambers are twofold conflicting, single eccentric and in addition cut length. They come in five sorts like ERW, Welded, Fabricated, LSAW pipes and unsurprising with a plain, hung and slanted end.
Hastelloy C22/C276 Pipes and Tubes are applied in different applications, for example, Fuel gas scrubbers, disastrous creation, and pickling frameworks, chlorination structures, cellophane fabricating, pesticide creation, horrible gas wells, squander treatment, Waste paper managing, pesticide creation, contamination control stack liners, channels, dampers, scrubbers, stack-gas re-warmers, fans and fan property, consuming scrubber frameworks, and so on. We besides play out several testing on our things to guarantee the possibility of them.
Hastelloy C22 Pipes & Tubes Manufacturers in Mumbai, Hastelloy C22 Pipes & Tubes Suppliers in Mumbai, Hastelloy C22 Pipes & Tubes Stockists in Mumbai, Hastelloy C22 Pipes & Tubes Exporters in Mumbai, Hastelloy C276 Pipes & Tubes Manufacturers in Mumbai, Hastelloy C276 Pipes & Tubes Suppliers in Mumbai, Hastelloy C276 Pipes & Tubes Stockists in Mumbai, Hastelloy C276 Pipes & Tubes Exporters in Mumbai
C22/C276 Hastelloy Pipes and Tubes Equivalent Grades
| STANDARD | UNS | WNR. | EN | JIS | GOST | OR |
|---|---|---|---|---|---|---|
| Hastelloy C22 | N06022 | 2.4602 | NiCr21Mo14W | NW 6022 | - | - |
| Hastelloy C276 | N10276 | 2.4819 | NiMo16Cr15W | NW 0276 | ХН65МВУ | ЭП760 |
Specification of Hastelloy Alloy C22/C276 Pipes and Tubes
Hastelloy Seamless Pipes and Tubes : ASTM B622 / ASME SB622
Hastelloy Welded Pipes and Tubes : ASTM B619 , ASME SB619 / ASTM B626, ASME SB626
Pipe Size : Seamless 1/2" - 10" , Welded 1/2" - 48".
Tube Size : 4 to 219mm W. T.: 0.5 to 20mm
Schedule : SSCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type : Seamless / ERW / Welded / Fabricated Pipes
Form : Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes
Length : Single Random, Double Random & Required Length
End : Plain End, Beveled End, Treaded
End Protection : Plastic Caps
Inspection, Test Reports : Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non Destructive Test Reports
Packing : Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests
Specials : Sizes and Specifications other than above can be manufactured on request
Chemical Alloyion of Hastelloy C22/C276 Seamless and Welded Pipes / Tubes
| Grade | Ni | C | Mo | Mn | Si | Fe | P | S | Co | Cr | W | V |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Hastelloy C22 | Balance | 0.010 max | 12.5-14.5 | 0.50 max | 0.08 max | 2-6 | 0.02 max | 0.02 max | 2.5 max | 20-22.5 | 2.5-3.5 | 0.35 max |
| Hastelloy C276 | Balance | 0.01 max | 15–17 | 1.0 max | 0.08 max | 4–7 | 0.04 max | 0.03 max | 2.5 max | 14.5–16.5 | 3–4.5 | 0.35 max |
Mechanical Properties Of Hastelloy C22/C276 Pipes and Tubes
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| Hastelloy C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000, MPa – 690 | Psi – 45000, MPa – 310 | 45 % |
| Hastelloy C276 | 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 1,15,000 , MPa – 790 | Psi – 52,000 , MPa – 355 | 40 % |
Physical Properties of Hastelloy C22 Pipes And Tubes
| Density | 0.314 lb/in3 |
|---|---|
| Specific Gravity | 8.69 lb/in3 |
| Specific Heat (Btu/lb/Deg F - [32-212 Deg F] | 0.1 |
| Melting Point (Deg F) | 2550 |
| Thermal Conductivity | 70 |
| Mean Coeff Thermal Expansion | 6.9 |
| Modulus of Elasticity Tension | 29.9 |
Physical Properties of Hastelloy C276 Pipes And Tubes
| Physical Property | Temp., °F | British Units | Temp., °C | Metric Units |
|---|---|---|---|---|
| Density | 72 | 0.321 lb/in.3 | 22 | 8.89 g/cm.3 |
| Melting Range | 2415-2500 | 1323-1371 | ||
| Electrical Resistivity | 75 | 51 microhm-in. | 24 | 1.30 microhm-m |
| Mean Coefficient of Thermal Expansion |
75-200 | 6.2 microinches/in.-°F | 24-93 | 11.2 x 10-6 m/m•K |
| 75-400 | 6.7 microinches/in.-°F | 24-204 | 12.0 x 10-6 m/m•K | |
| 75-600 | 7.1 microinches/in.-°F | 24-316 | 12.8 x 10-6 m/m•K | |
| 75-800 | 7.3 microinches/in.-°F | 24-427 | 13.2 x 10-6 m/m•K | |
| 75-1000 | 7.4 microinches/in.-°F | 24-538 | 13.4 x 10-6 m/m•K | |
| Thermal Conductivity | -270 | 50 Btu-in./ft.2 hr.-°F | -168 | 7.2 W/m•K |
| -100 | 60 Btu-in./ft.2 hr.-°F | -73 | 8.6 W/m•K | |
| 0 | 65 Btu-in./ft.2 hr.-°F | -18 | 9.4 W/m•K | |
| 100 | 71 Btu-in./ft.2 hr.-°F | 38 | 10.2 W/m•K | |
| 200 | 77 Btu-in./ft.2 hr.-°F | 93 | 11.1 W/m•K | |
| 400 | 90 Btu-in./ft.2 hr.-°F | 204 | 13.0 W/m•K | |
| 600 | 104 Btu-in./ft.2 hr.-°F | 316 | 15.0 W/m•K | |
| 800 | 117 Btu-in./ft.2 hr.-°F | 427 | 16.9 W/m•K | |
| 1000 | 132 Btu-in./ft.2 hr.-°F | 538 | 19.0 W/m•K | |
| Specific Heat (Calculated) |
Room | 0.102 Btu/lb.-°F | Room | 427 J/kg•K |
